flexible printed circuit board multilayer
,electric rigid PCB board
,flexible membrane switch PCB
-
모델 번호.HC-FPC-011
-
재료복잡한
-
난연제V2
-
기계식 단단페슈블
-
가공기술전해박
-
기본 재료알류미늄
-
단열재유기수지
-
와이어 저항≤ 1Ω/cm
-
현재 등급25-100mA, 0-30V DC
-
작업 전압≤ 50V DC
-
절연 전압≤ 100MΩ 250V DC
-
직장 생활≤ 100만회
-
작업 온도-40 섭씨-70 섭씨
-
작업 습도40 섭씨-≤ 98%RH
-
기초재료 가압1500V DC
-
최소 주문 수량100
Electric Flexible Printed PCB Rigid Board Multilayer Circuit Board
Electric Flexible Printed PCB Rigid Board Multilayer Circuit Board
We are a professional manufacturing company with comprehensive production systems and stable technical personnel. We provide complete one-stop service solutions for flexible printed circuit boards.
Layer Structure
- Overlay
- Overlay adhesive
- Dome retainer
- Metal dome
- Spacer adhesive
- Circuit
- Rear adhesive (customizable)
Production Capabilities
- Screen Print Department
- IR Tunnel
- Thickness Tester
- IR Oven
- Laser Cutting Machine
- Punching Department
- Emboss Key Section
- Assemble
- Electric Testing
- OQC Department
- Virtual Aspect Testing
- Punch Machine Department
- PU Coating Section
Technical Specifications
| Wire Resistance | ≤ 1 Ohm/cm |
| Current Rating | 25-100mA, 0-30V DC |
| Work Voltage | ≤ 50V DC |
| Insulation Voltage | ≤ 100M Ohm 250V DC |
| Working Life | ≤ One Million Cycles |
| Work Temperature | -40°C to 70°C |
| Work Humidity | 40°C ≤ 98%RH |
| Basic Material Pressurization | 1500V DC |
Detailed Performance Parameters
| Insulation Resistance | <100MΩ, 250V DC |
| Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50V DC |
| Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles |
| Operating Humidity | 40°C <98%RH |
| Spring Time | ≤ 5ms |
| Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees |
| Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |

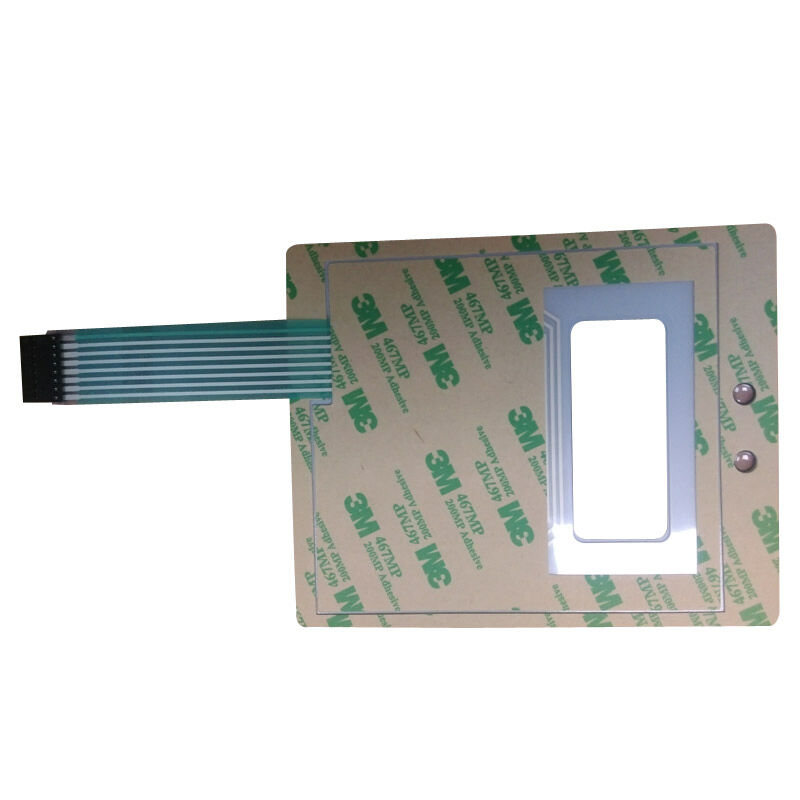

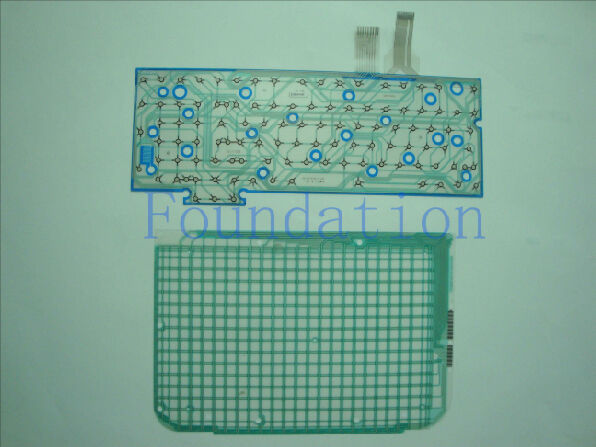

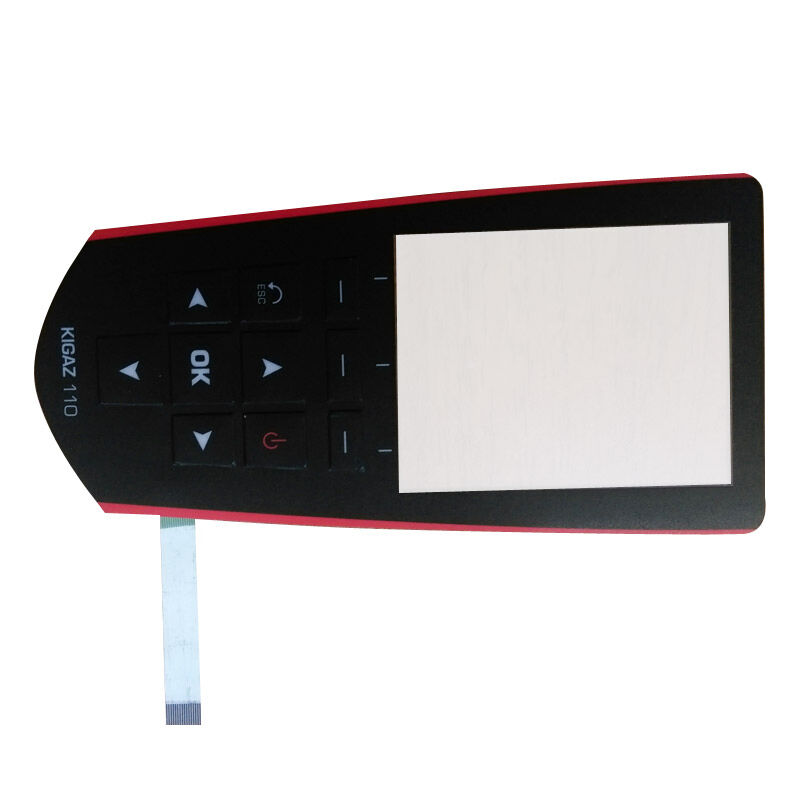

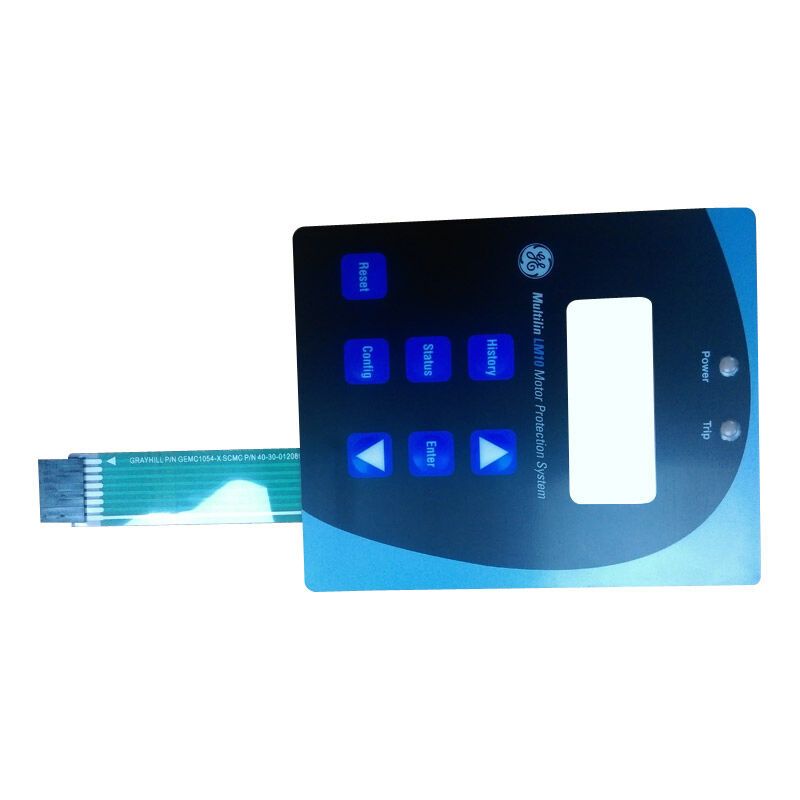

Product Images
Please contact us for more detailed information and technical specifications. Let's discuss your specific requirements!
