big size magnetic dart board
,multilayer flexible printed circuit dartboard
,flexible membrane switch dart board
-
모델 번호.TKM-MS-0541
-
조합 모드접착성 유연한 플레이트
-
전도성 접착제전도성은 페이스트
-
난연제V2
-
가공기술전해박
-
기본 재료구리
-
단열재금속복합재료
-
생활 시간>1 백만 번
-
와이어 저항≤ 1Ω/cm
-
현재 등급25-100mA, 0-30V DC
-
작업 전압≤ 50V DC
-
절연 전압≤ 100MΩ 250V DC
-
작업 온도-40 섭씨-70 섭씨
-
작업 습도40 섭씨-≤ 98%RH
-
기초재료 가압1500V DC
-
최소 주문 수량100

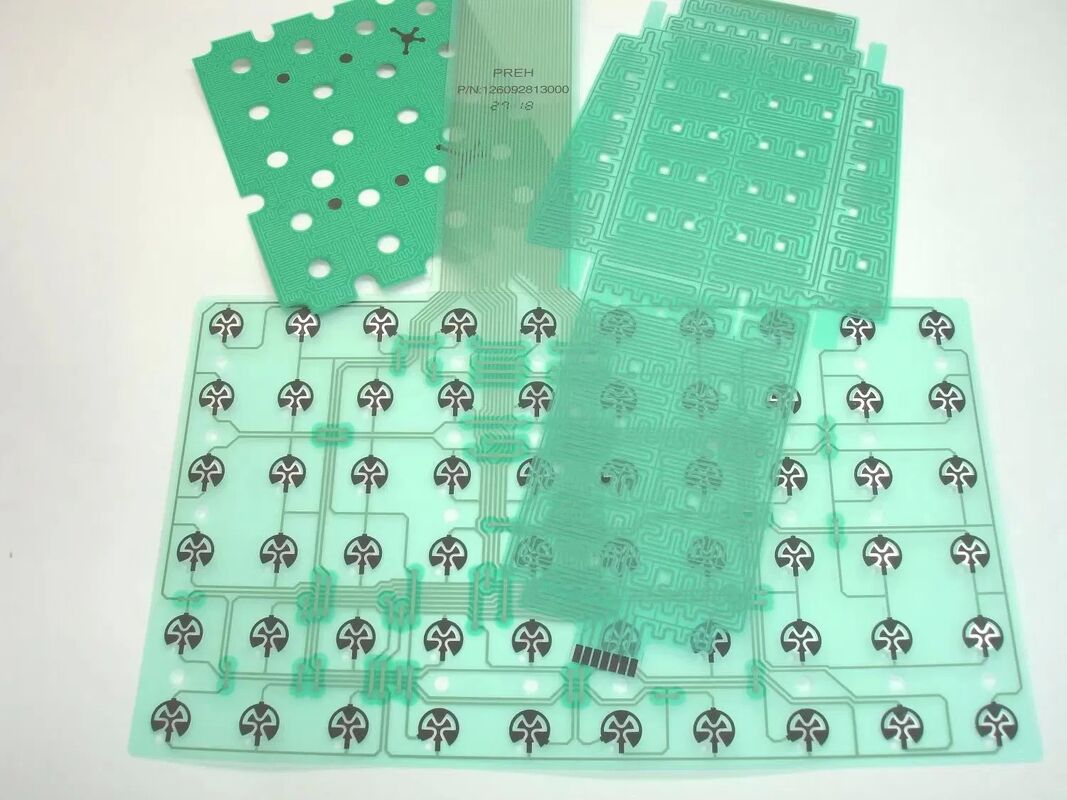

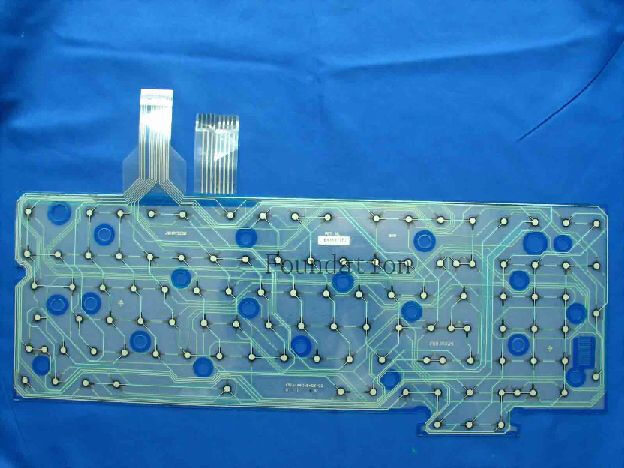

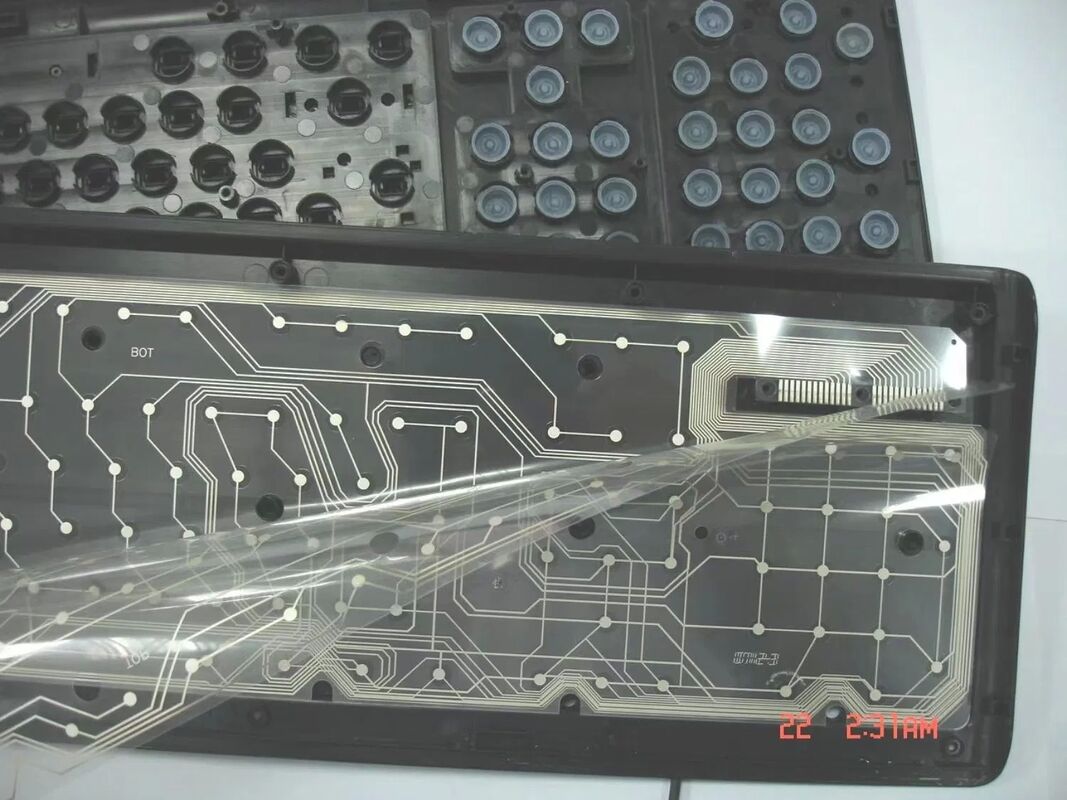

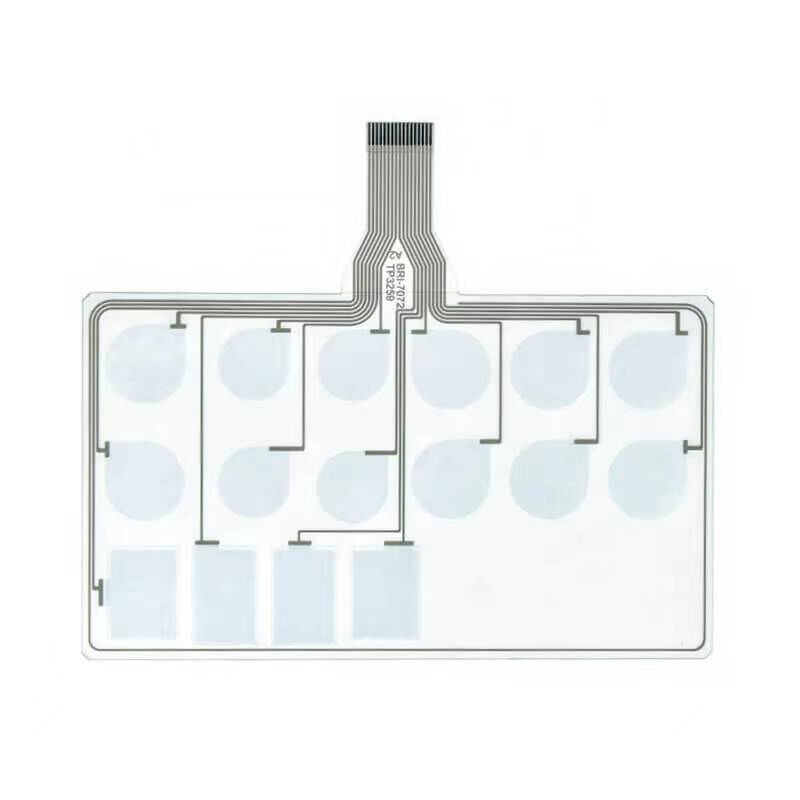

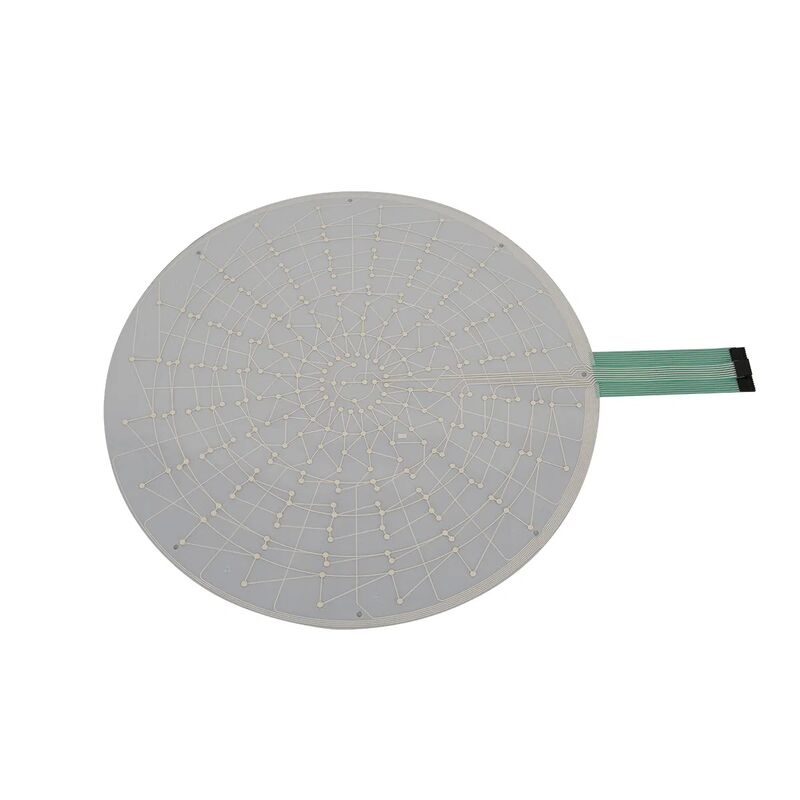

Big Size Multilayer Flexible Printed Circuit Magnetic Dart Boards
Big Size Multilayer Flexible Printed Circuit Magnetic Dart Boards
Big size multilayer flexible printed circuit magnetic dart boards with moistureproof construction and high reliability electric PCB board.
Flexible Printed Circuit Construction
Layer Structure
- Overlay
- Overlay adhesive
- Dome retainer
- Metal dome
- Spacer adhesive
- Circuit
- Rear adhesive (as customers request)
Production Capacity
Screen Print Department
IR Tunnel
Thickness Tester
IR Oven
Laser Cutting Machine
Punching Department
Emboss Key Section
Assemble
Electric Testing
OQC Department
Virtual Aspect Testing
Punch Machine Department
PU Coating Section
Technical Specifications
| Wire Resistance | ≤ 1 Ohm/cm |
| Current Rating | 25-100mA, 0-30V DC |
| Work Voltage | ≤ 50V DC |
| Insulation Voltage | ≤ 100M Ohm 250V DC |
| Working Life | ≤ One Million Times |
| Work Temperature | -40°C to 70°C |
| Work Humidity | 40°C ≤ 98%RH |
| Basic Material Pressurization | 1500V DC |
Why Choose Our Flexible Printed Circuits
- High reliability in function with low cost
- 100% function test before shipment with RoHS compliance
- Three factories to support mass production
- Professional staff and administrative level expertise
- Expert sales team for customer service support
- Metal dome or silicone keypad options available
- Waterproof seal & design reaching IP65 standard
- 17 years of experience working with famous brands including SANYO, Philips, Siemens, Mattel
Detailed Technical Parameters
| Parameter | Specification |
|---|---|
| Insulation Resistance | <100MΩ, 250V DC |
| Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50V DC |
| Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million times/Withstand millions of cycles |
| Operating Humidity | When 40°C, <98%RH |
| Spring Time | ≤ 5ms |
| Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees |
| Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |
Please contact us for more information - let's discuss your specific requirements!
